Automation


Autofocus
Subframe and full-frame focusing.

Autoguide
Subframe and full-frame guiding on multiple stars.

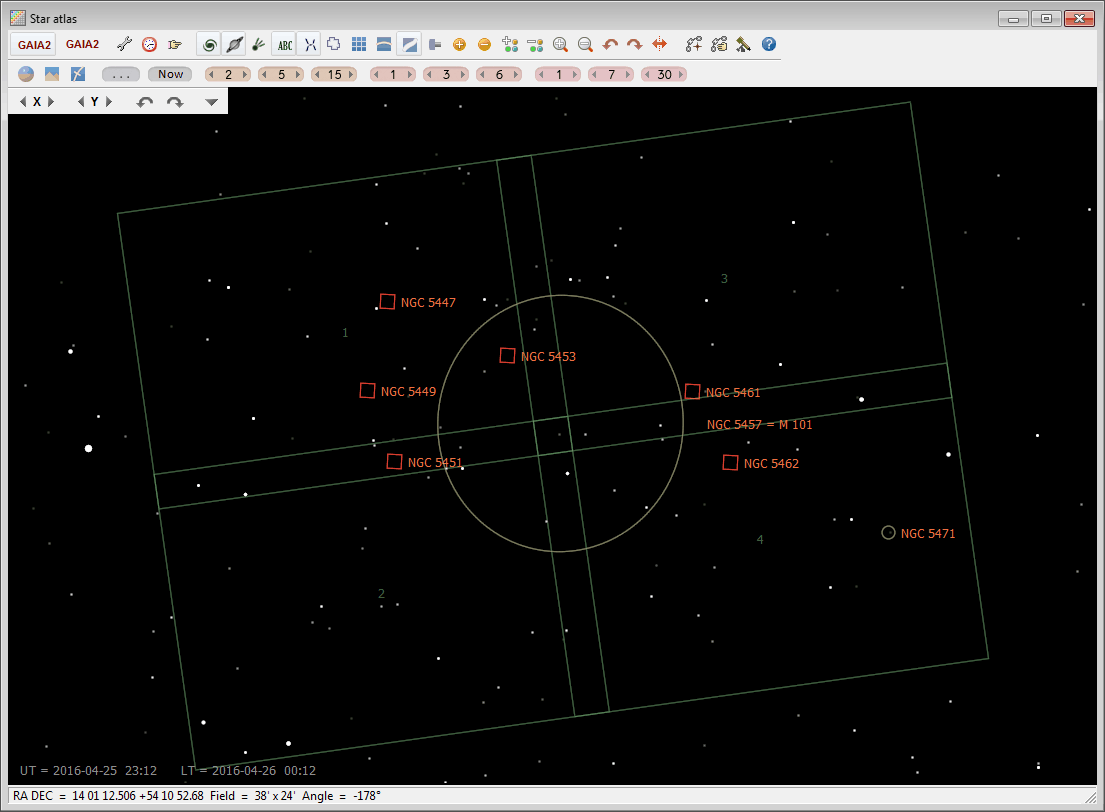

Telescope centering
Fully automated thanks to plate solving.

Automation

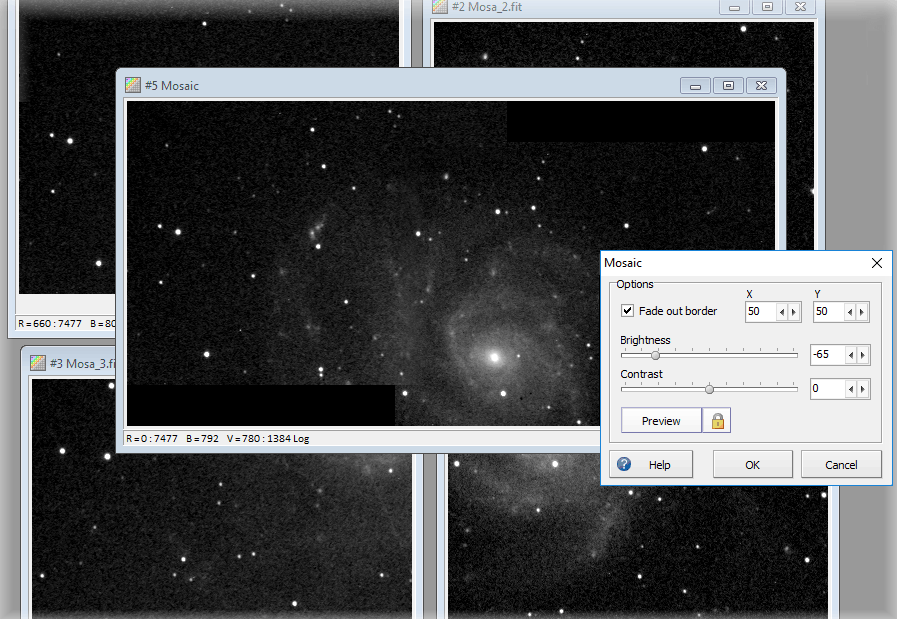

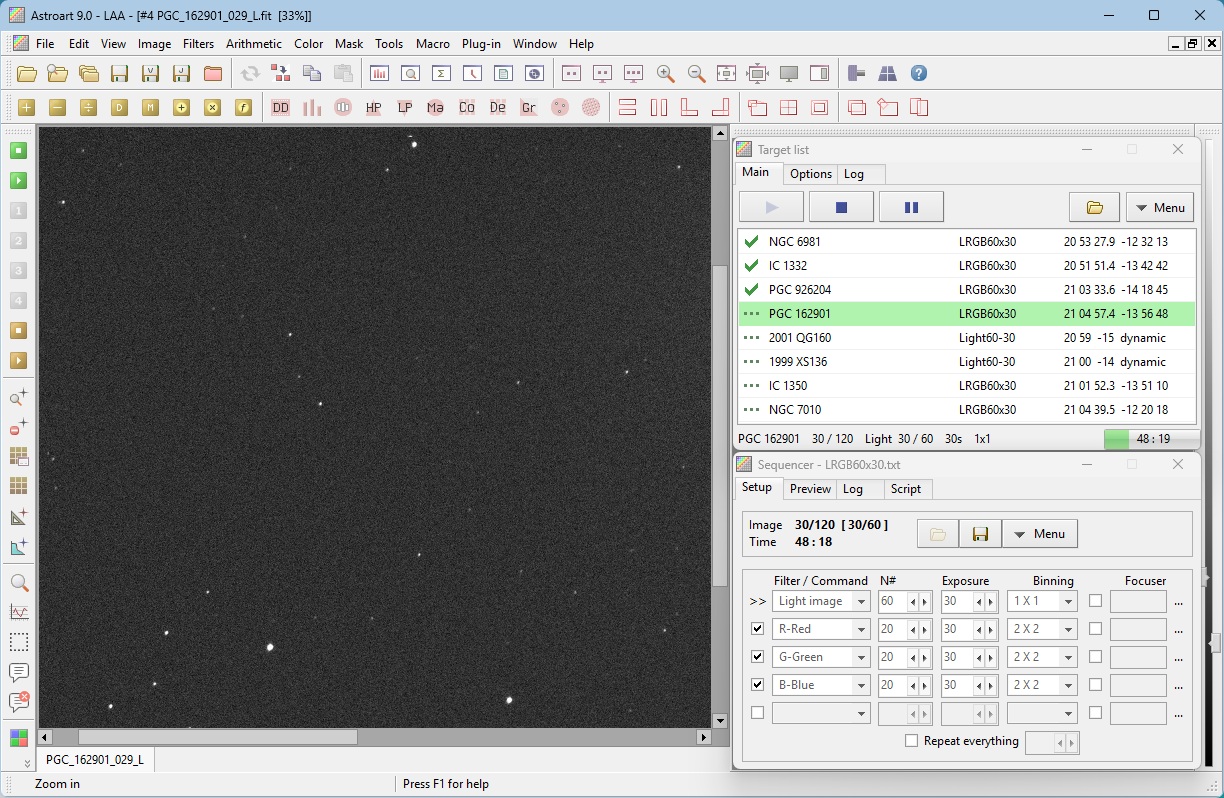

Write your own scripts in Basic to automate your tasks: supernova and asteroid search, surveys, mosaics, controlling your filter wheel, telescope and focuser. Several supernovas were discovered this way by Astroart users.
Script panel
Driver SDK
Let Astroart control your custom hardware, just writing a driver with the SDK. Several demo projects and complete documentation is available at the Download page.

Quick links




Camera control


Camera control is available for Astroart as plug-ins. This allows us to support new models very quickly.
The control of telescopes, filter wheels and focusers is integrated in Astroart and it's updated in Service Packs.


ASCOM (Atik, QHY, ZWO ASI, Orion, etc.) - Version 2.10

A generic plugin which supports all cameras compatible with the ASCOM interface. It's now always included in the Astroart Setup.

Download


Canon™ DSLR cameras - Version 2.10

Supports cameras since DIGIC III hardware (450D, 40D, 1000D) and newer (500D, 550D, 600D, 650D, 700D, 750D, 760D, 800D, 1100D, 1200D, 1300D, 2000D, 4000D, 250D) , higher models (50D, 60D, 70D, 77D, 80D, 5D MII, 5DMIII, 5DMIV, 6D, 6DMII, 7D, 1D MIII, 1D MIV, 1Ds MIII, 1DC, 1DX, 100D, 200D, 200DII, 90D) and latest mirrorless (RP, M200, M6II).

Download

A plugin for older cameras is available here, requires Canon Utilities.


Nikon™ DSLR cameras - Version 1.40

For Nikon cameras with Bulb control via USB or DSUSB, (since 2012-2013, so: D5200, D5300, D5500, D5600, D7100, D7200, D600, D610, D750, DF, D4S, D500, D800, D800E, D810, D810A, D850, D5, 1V3) and (D5100, D7000, D300, D300S, D700 using the Shoestring DSUSB bulb cable). The mirrorless are included but not tested yet (Z6, Z7, Z50).

Download


SBIG™ cameras - Version 5.40

USB, Ethernet and parallel port interface. Guider CCD and adaptive optics supported. Compatible with Celestron™ PixCel 237 and 255.

Download

Legacy cameras with serial or parallel port connection, may work only on Windows XP:
ST-6     ST-5     ST-4


Web cams, video cameras (ASI, DMK, Meade LPI, Celestron NexImage, etc.) - Version 3.60

Long exposures (automatic sum of video frames), autoguide, fast focus, sequences, binning, subframes both on B/W and color cameras.

Download

A plugin for modified web cams (Steve Chambers, etc.) and SAC7, which supports long exposure thanks to the external control of the electronic shutter is available here. For more info see: PMDO Observatory.


Moravian™ - Version 2.2

The native plugin is available at the Moravian Instruments web site, section "Download" then "Camera drivers for 3rd party software". Newer cameras can be controlled by the ASCOM plugin above.

Link


FLI™ - Version 1.50

Native plugin for FLI cameras and filter wheels. Newer cameras can be controlled by the ASCOM plugin above.

Download


QSI™ - Version 7.2

The driver is available at QSI web site or it's included with the camera. Recent models are also compatible with the ASCOM standard.

Link


Starlight-Xpress Lodestar, LodestarX2 - Version 2.0

For imaging and autoguide. USB2 connection.

Download


Starlight-Xpress Trius SX (SX-56, SX-46, SX-18) - Version 1.0

RBI correction, binning 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, SXV guider supported.

Download


Starlight-Xpress Trius SX, SXV/R "H" (5,9,16,18,35,36,674,694,814,825,Ultrastar) - Version 3.0

Both monochrome and "C" models supported. Binning 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, SXV guider supported.

Download


Starlight-Xpress Trius, SXV/R "M" (M25, M25C, M26C) - Version 2.00 / 1.20

Several binning modes, SXV guider supported.

Download M25/M25C     Download M26C


Starlight-Xpress SXV "M", "MX" USB2 (M5, M7, M7C, M8C, M9, MX916,716,516) - Version 2.51

Both monochrome and "C" models supported. Native USB2 connector and parallel-USB2 interfaces. Guider camera supported.

Download


Starlight-Xpress USB1 cameras

Older cameras with USB 1.0 connection.

 HX916      MX916/716/7C      MX516/512/5C      HX516


Starlight-Xpress parallel port

Fast interface supported. For Windows XP.

 MX716/916      MX7C      MX516/512/5C      HX516/512      SXL8-P      SX/SXR


Meade™

Several binning modes, focus, subframes, etc.

 DSI 1/1Pro      DSI 2/2Pro      208/216XT      416XT


Lumenera™ - Version 1.30

Most cameras supported. Binning 1x1 and 2x2.

Download


XIMEA™

XIMEA CCD cameras.

Link


Apogee™ - Version 2.40

USB and Ethernet. Filter wheels supported.

Download

The plugin for older cameras (AP, KX, SPH, Lisaa) is available here.


Audine / Genesis - Version 1.0

Audine and Genesis cameras with USB or parallel port connection.

 USB      Parallel


Opticstar DS-335C/ICE - Version 1.0

Several binning modes and fast focus.

Download


SAC10™ - Version 1.0

By SAC IMAGING, both color and b/w modes are supported.

Download


Artemis and Atik (without ASCOM) - Version 2.0

By Steve Chambers and associates. For old cameras not compatible with ASCOM. Drivers available at the Artemis and Atik web site.

Link


HISIS 2216, 23, 24, 33, 38, 44 - Version 2.60

Fast focus, binning 1x1, 2x2, 3x3, 4x4, 6x6, 8x8, control of buzzer, defrost, temperature.

Download


Orion first autoguider (without ASCOM) - Version 1.0

By Tom Van den Eede. For the first model of the Orion Starshoot which came without ASCOM. Read carefully the documentation, 32 bits only. All new Orion cameras can be controlled by the ASCOM driver above.

Download


QGuider, QHYx, CPx-x, ALccd-x, CCDLuna-x, MagZero (without ASCOM) - Version 1.0

Please note: newer cameras are now ASCOM compatible.

Link


Other cameras

These older plugins may work only on Windows XP.

 Yankee Robotics       OES Alpha Mini       Imperx™ VCE       Cookbook 245
