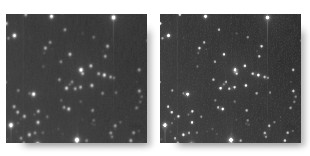

Adaptive filters


Astroart contains several adaptive filters. The Non-Linear high pass filter improves the sharpness of an image without introducing artifacts.

The Adaptive Low pass reduces the noise of an image without blurring and loosing definition.


Deconvolution


With the deconvolution filters it's possible to restore an image corrupted by blur or bad tracking. This can be also applied to old film photos.

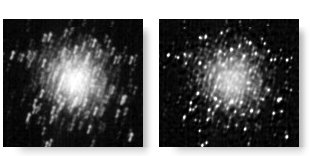

This image of M13 were taken a TMAX 400 B&W film. It was restored via Maximum Entropy deconvolution.


Preprocessing


The following example shows the Preprocessing Window with its file boxes filled by simple Drag & drop.
Preprocessing
In a few seconds all the images are corrected for dark frame, flat field, aligned and summed into a single image.


Trichromy


Several white balance methods, and the realtime preview, let you easily combine three channels.
trichromy
This image of the Fishhead Nebula (IC 1795) was made with the "Hubble palette", using the S-II, H-Alpha and OIII filter. Image and processing by Rudi Bjørn Rasmussen.


Mosaics


Mosaics can be acquired automatically using built-in scripts.
demosaic
When processing, using the live preview, it's very easy to tune the brightness of every frame and to fade the overapped region.

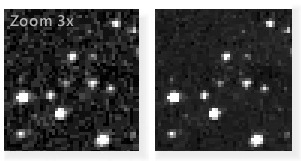

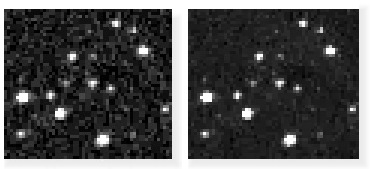

De-noise filters


These filters attenuate the random noise of an image, without blurring the details.

Thanks to realtime preview, the best filter parameters can be found visually. Just try it with demo version.


Gradient removal


Six filters to correct any kind of uneveness of illumination in your images, usually caused by light pollution. Click to enlarge.
Remove gradient
The satellite stray was removed with the cosmetic filter "Remove lines".


Auto-alignment


To increase the signal to noise ratio it is necessary to acquire many images and then sum them.
Align
Astroart is able to align and stack hundreds of images quickly, using different algorithms for star fields, spectrums, comets, planets and wide objects.


LRGB quadrichromy


Astroart fully supports LRGB and LCMY quadrichromy, with standard L*A*B colour conversion.
LRGB
This example shows the benefits of using a fourth frame (luminance). Noise in the colour frames don't affect the sharpness of the final image.


Common pictures

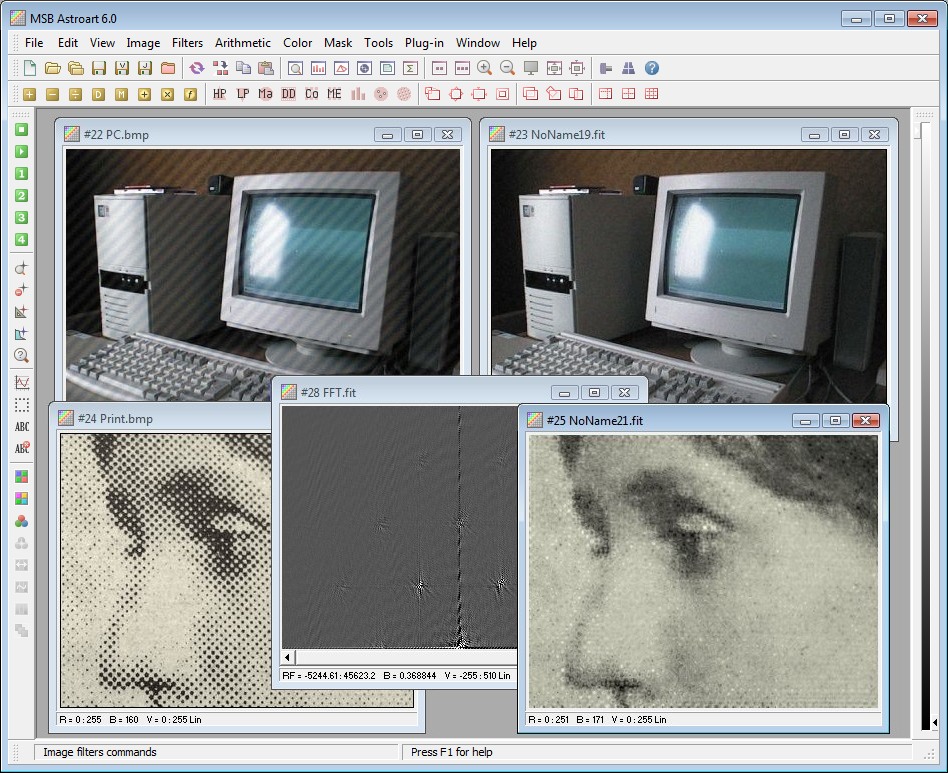

With Astroart it's possible to apply the most powerful filters like Deconvolution and FFT to your own photos.
Common images
Working with 96 bits (32 for every R,G,B channel) it's possible to correct better the defects and to balance accurately the colours.


Next page: Image analysis
